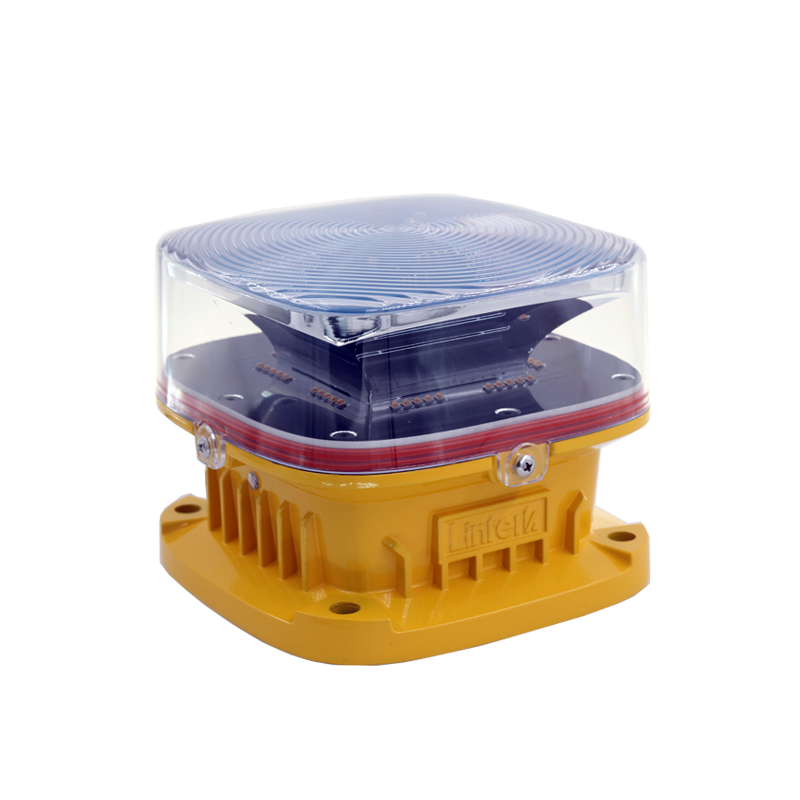

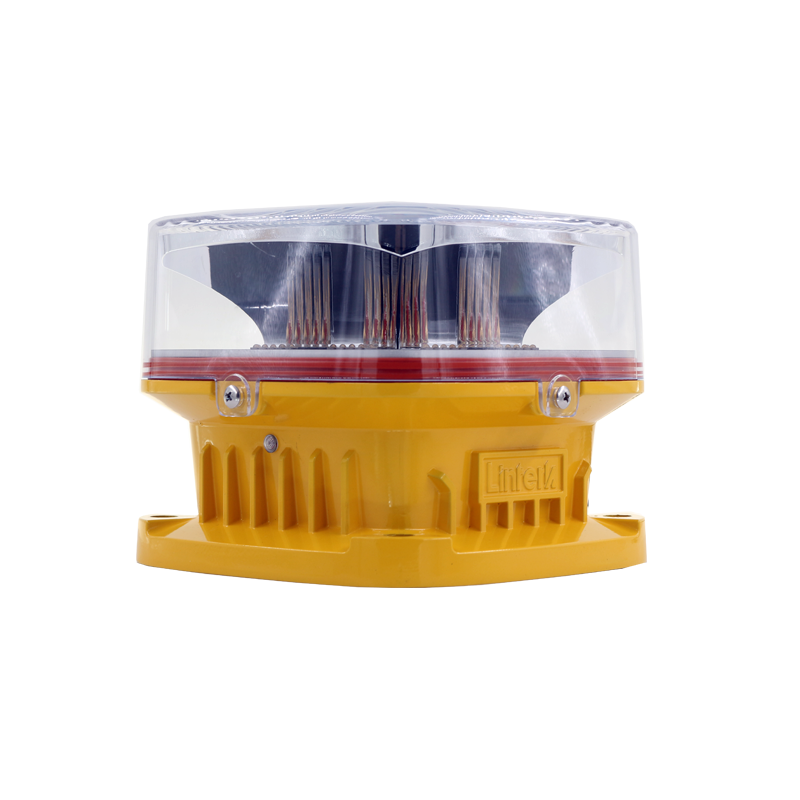

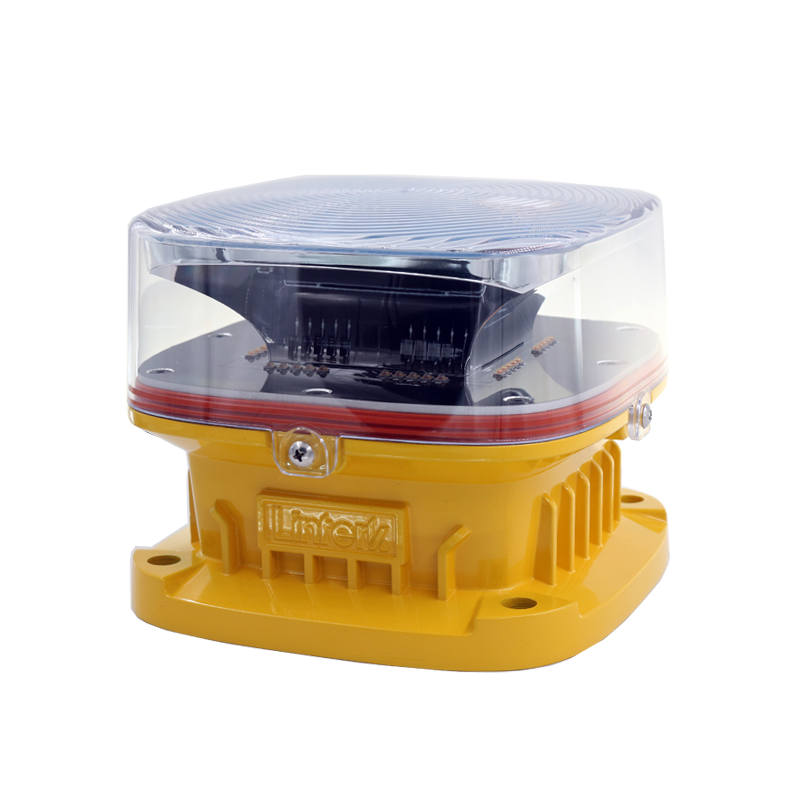

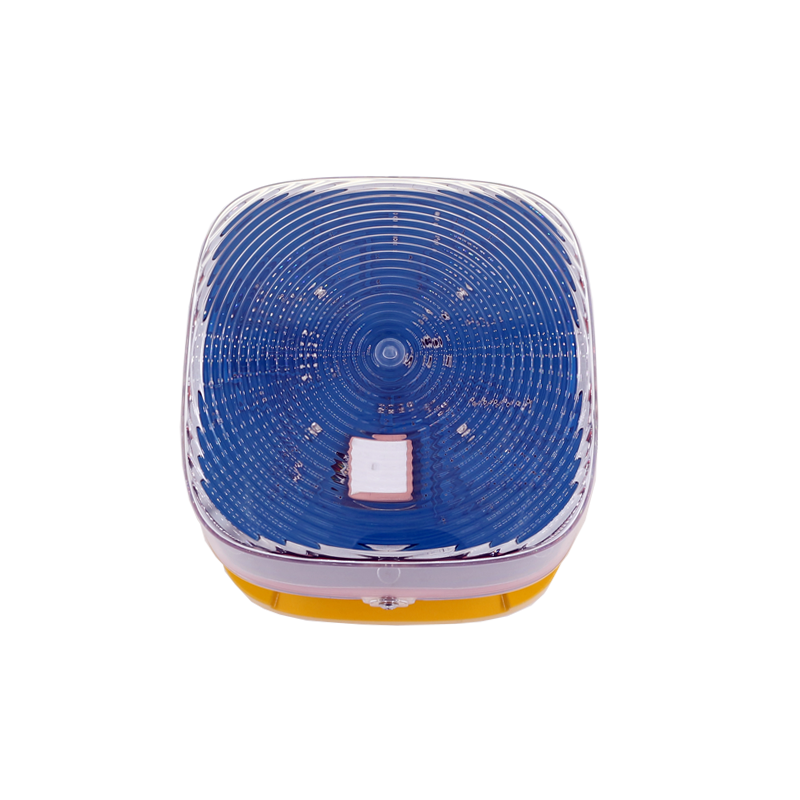

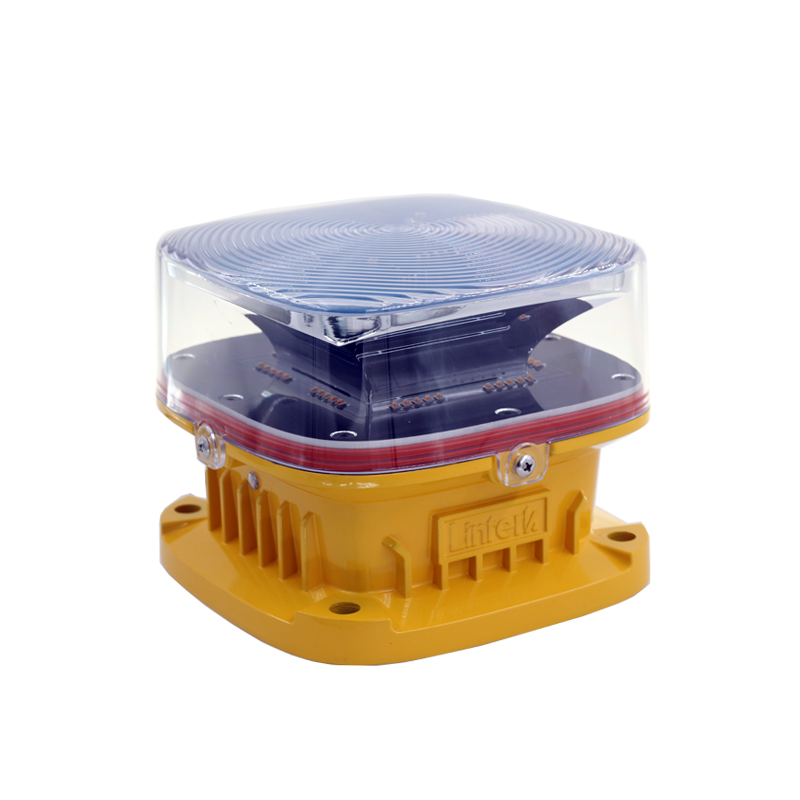

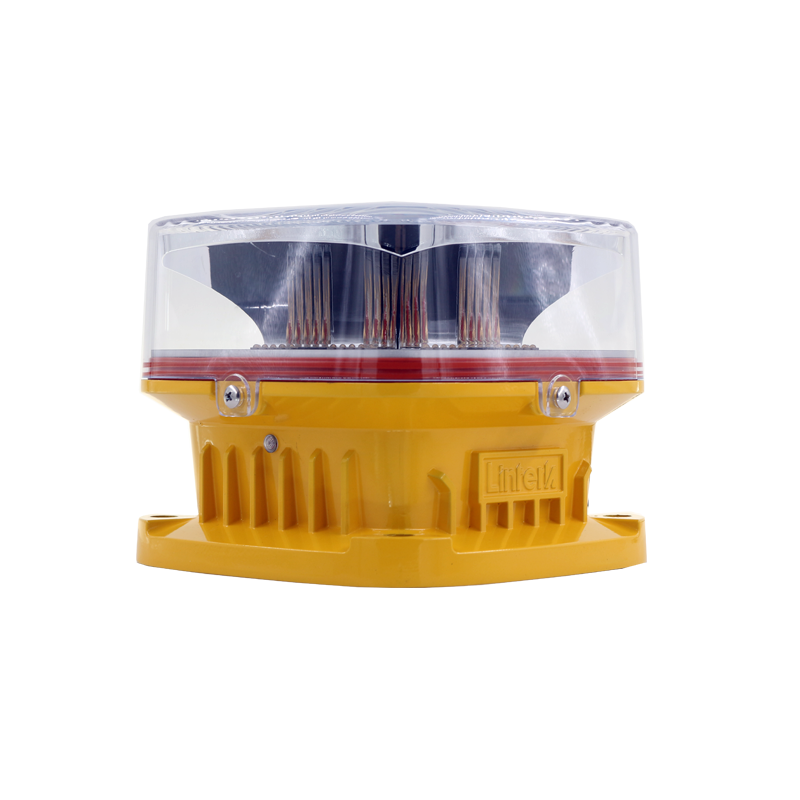

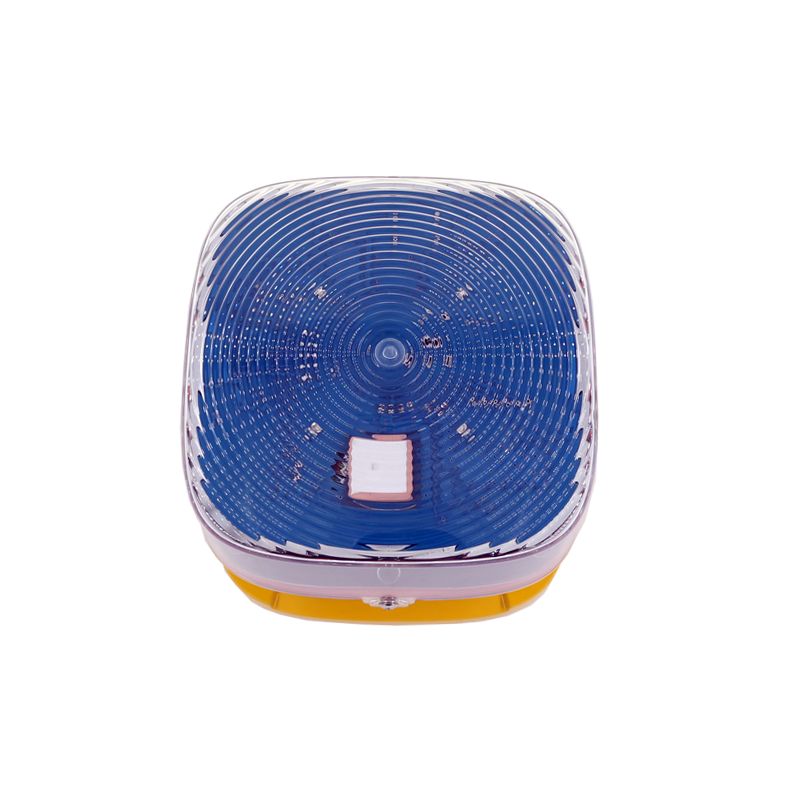

Medium intensity aviation obstruction light

Model numberLT-01-MB(L)
Work voltageAC85-265V
Power consumption<2W
Surge resistance

IEC61000-4-5 3kA, IEC61000-4-5 6kV

LightsourceLED
Light colorRed
Vertical degree≥3°
Horizontal degree360°
Flashing rate20~60 FPM (adjustable)
LED life≥100,000 hours
Share:

PRODUCT DESCRIPTION

Specification:


Model numberLT-01-MB (L)Photosensitivity0~500cd/ ㎡(adjustable)
Work voltageAC85-265VIntensity2000±25%cd
Power consumption<2WLED life≥100,000 hours
Surge resistance

IEC61000-4-5 3kA

IEC61000-4-5 6kV

Weight2.2Kg
LightsourceLEDAmbient temperature-40˚C ~ +55˚C
Light colorRedAmbient humidity0% ~ 95% (no condensing)
Vertical degreeWind level240Km/h
Horizontal degree360°IP rateIP67
Flashing rate20~60 FPM(adjustable)Materials

Shell: Aluminum Alloy

Cap: High Strength PC

Reflector: ABS Vacuum Coating



Executive Standard:


ICAO (Aerodromes Annex 14-2018)

CAAC (MH5001-2019), (MH/T6012-2015)

FAA (AC150-5345-43J)

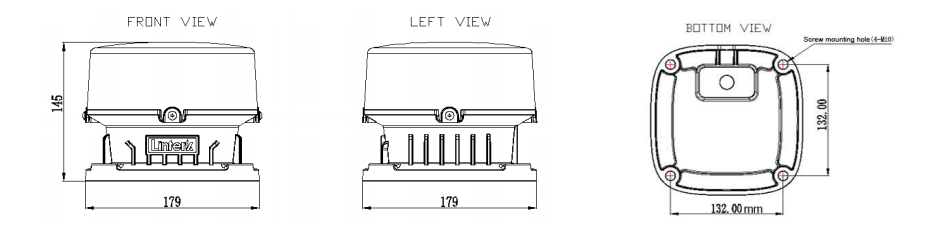

Installation size:

Medium intensity aviation obstruction light

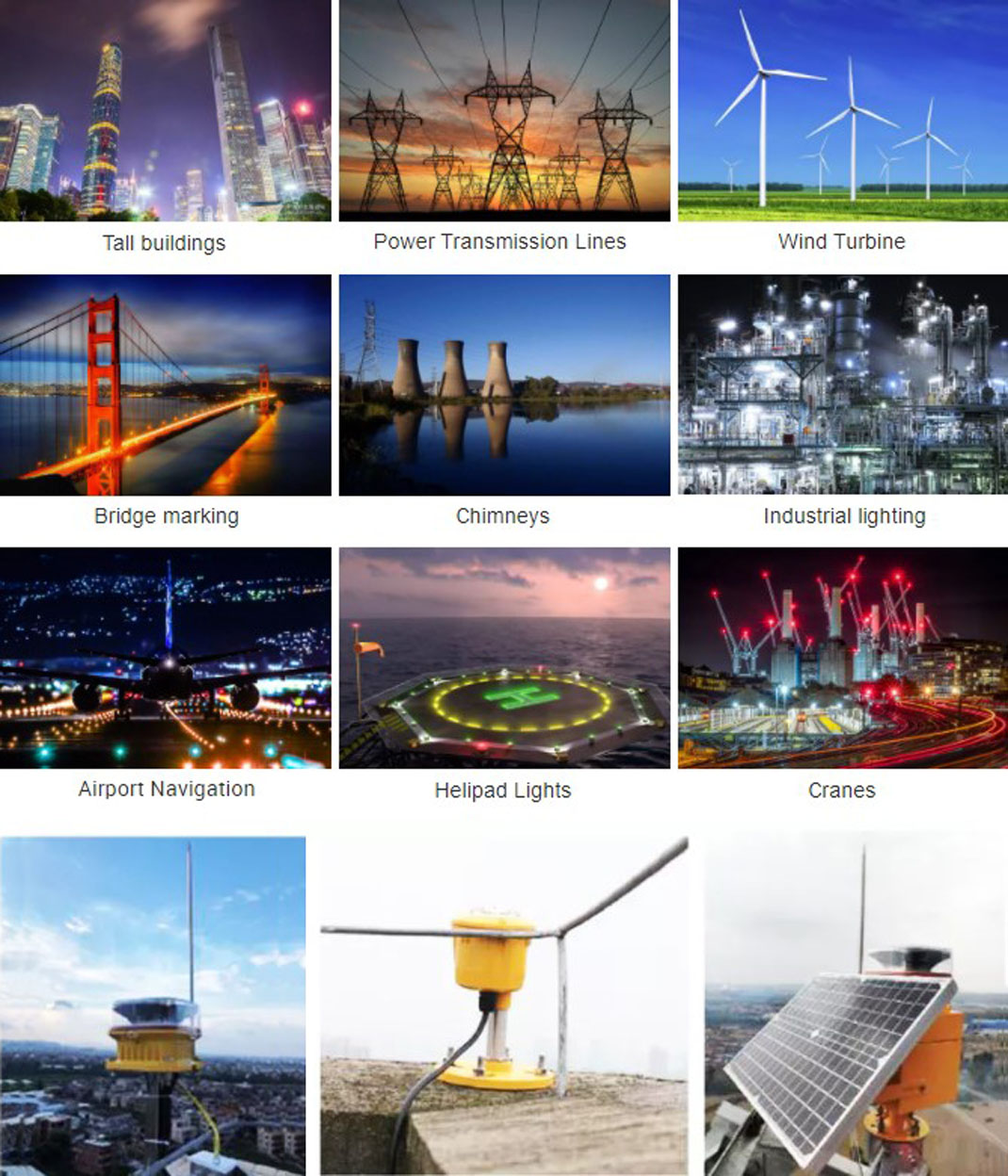

Application Fields
