Aircraft Warning Marker Ball

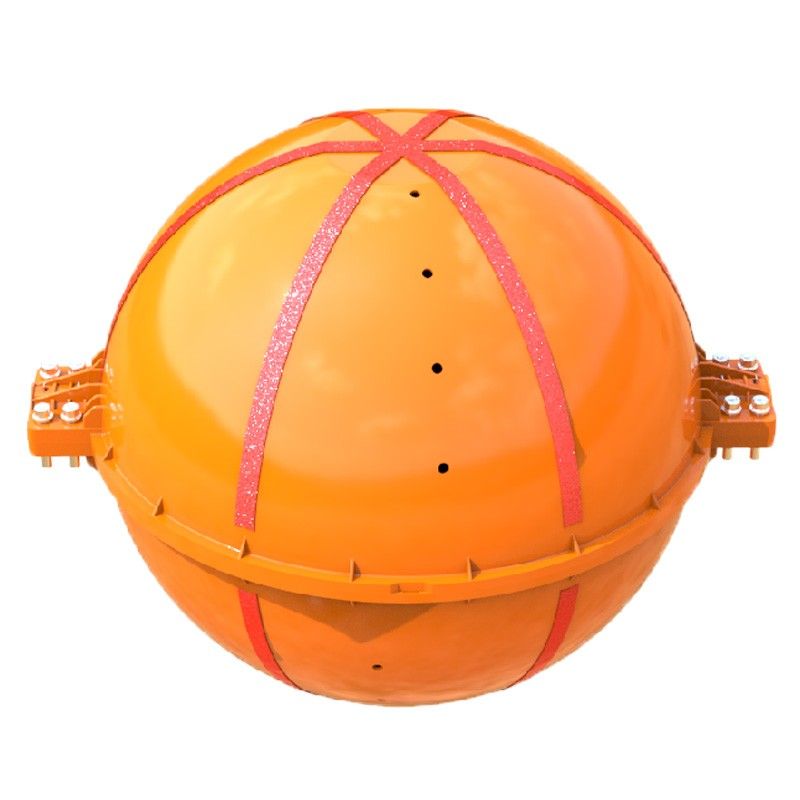

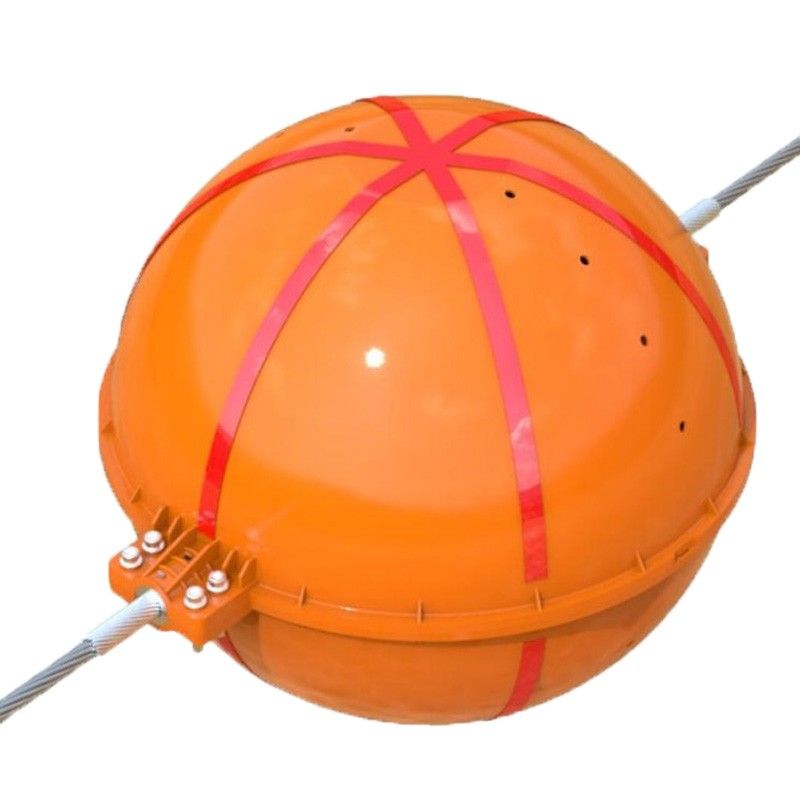

Product nameAviation Warning Sphere
ModelLT-03-AO06
Dimesion400mm/600mm diameter (customizable)
ColorAviation Orange
MaterialFiberglass
Lifespan>20 years
Ambient temperature
-55℃~+75℃
Ambient humidity0%-95% (no condensing)
Wind level240Km/h


Share:

PRODUCT DESCRIPTION

Features


nUltra-light high-strength glass fiber body

nSuper corrosion-resistant stainless steel nut

nUltra-light and corrosion-resistant aluminum alloy clamp

nSuitable for all kinds diameters of cables

nLeakage channel design to prevent water accumulation in the ball

nDifferent diameters and colors can be customized



Specification


TypeAviation warning sphere
ModelLT-03-AO06
Dimension400mm/600mm diameter (customizable)
ColorAviation orange, Orange-white, red, white, combining colors (customizable)
Wire diameter6.5~55mm (customizable)
Visible distance3000 meters
Life time> 20 years
Voltage level10-1100KV
MaterialsBody: Glass Fiber(customizable)
Wire clip: Aluminum Alloy(customizable)
Ambient temperature-55˚C ~ +75˚C
Ambient humidity0% -95% (no condensing)
Wind level240Km/h
Ref. Weight6.5Kgs




Executive Standard


nCAAC《MH5001-2013》

nICAO 《Aerodromes Annex 14-2018》

nFAA  《AC 70-7460/1L》



Installation size





Application

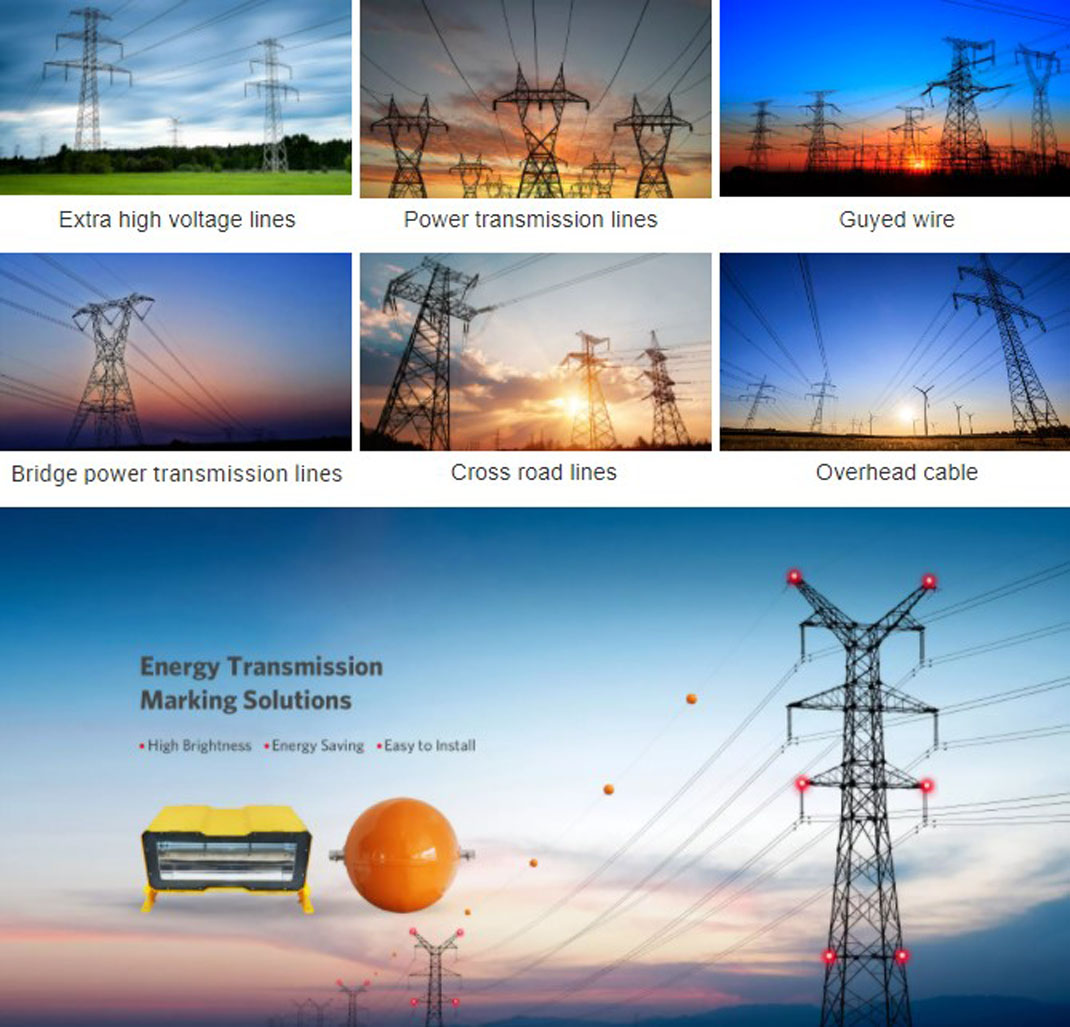

Aviation warning sphere is used for warning aircraft pilots in daytime and nighttime. It can be used in overhead cable, guyed wire, especially in extra high voltage power transmission line, cross river power transmission line, draft line, overhead line, cross road,  bridge power transmission line and so on.

Aircraft Warning Marker Ball
