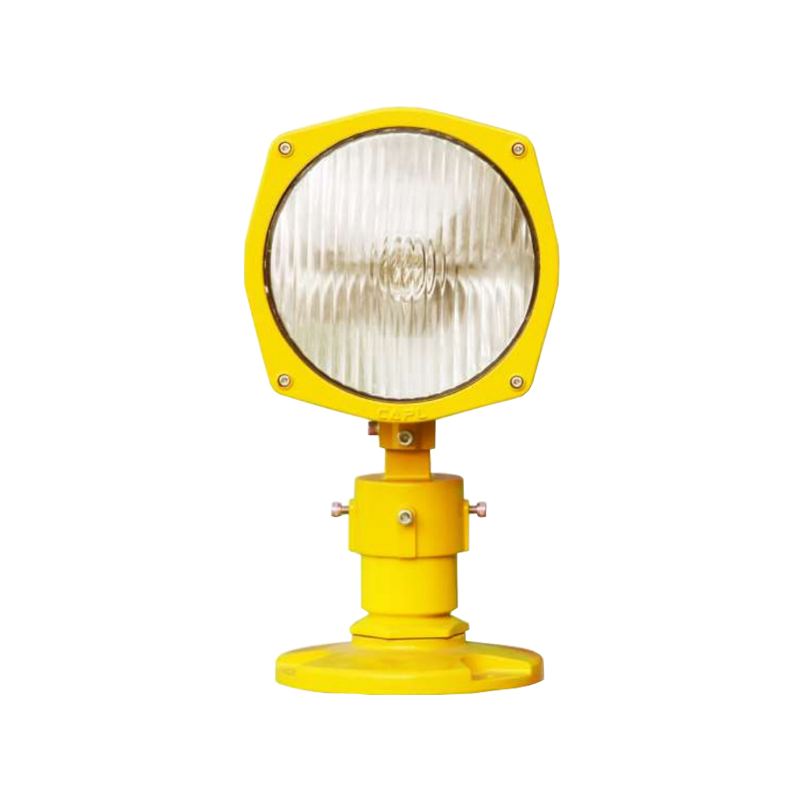

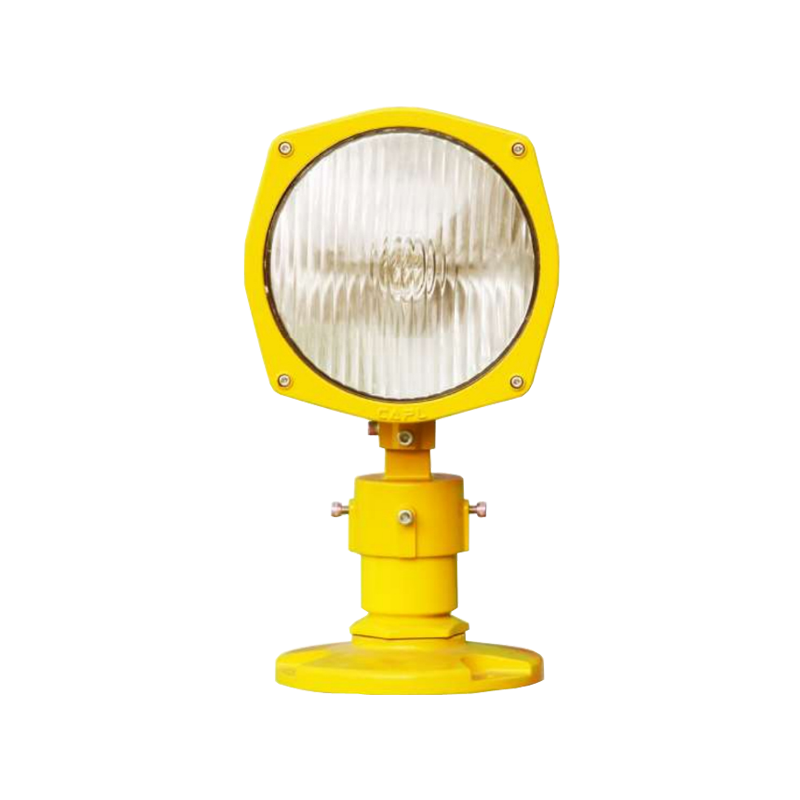

Elevated Approach Light
| Power | 150W |
Intensity | >20000cd |
IP rate | IP54 |
Work temperature | -55- + 55 ℃ |
PRODUCT DESCRIPTION
Features
Light intensity and light color meet the standard requirements.
Precise optical control, high light utilization rate, high brightness, outstanding optical performance
The overall shape of the lamp is beautiful, the heat dissipation performance is good, the design is reasonable
The lamp adopts a split structure, the lamp body is fully enclosed structure, reduce impurities and water Gas enters the lamp, which improves the service life of the lamp optics and reduces the number of maintenance operations.
The main body of the lamp is made of aluminum alloy, and it is made of stainless steel , which has good anti-corrosion performance.
Executive Standard
ISO9001
ICAO(Aerodromes-Annex-14-2013.7)
Comply with ICAO-"Airport Design Manual"
FAA(AC150 / 5345-46E)
GB7256-2015
GB3977-83 "Color Representation"
GB7001-86
CA-137--the AC 2015-03
Structure
1 | Buckle | 11 | Front cover |
2 | Rear cover | 12 | Scale plate |
3 | Seal | 13 | Bracket |
4 | Socket | 14 | Vertical pipe |
5 | Terminal | 15 | Foldable parts |
6 | Lamp bracket | 16 | Flanges |
7 | Lamp body | 17 | Connecting cord |
8 | Reflective bowl | 18 | Nameplate |
9 | Glass cover | 19 | Snap spring |
10 | Front cover gasket |
Application

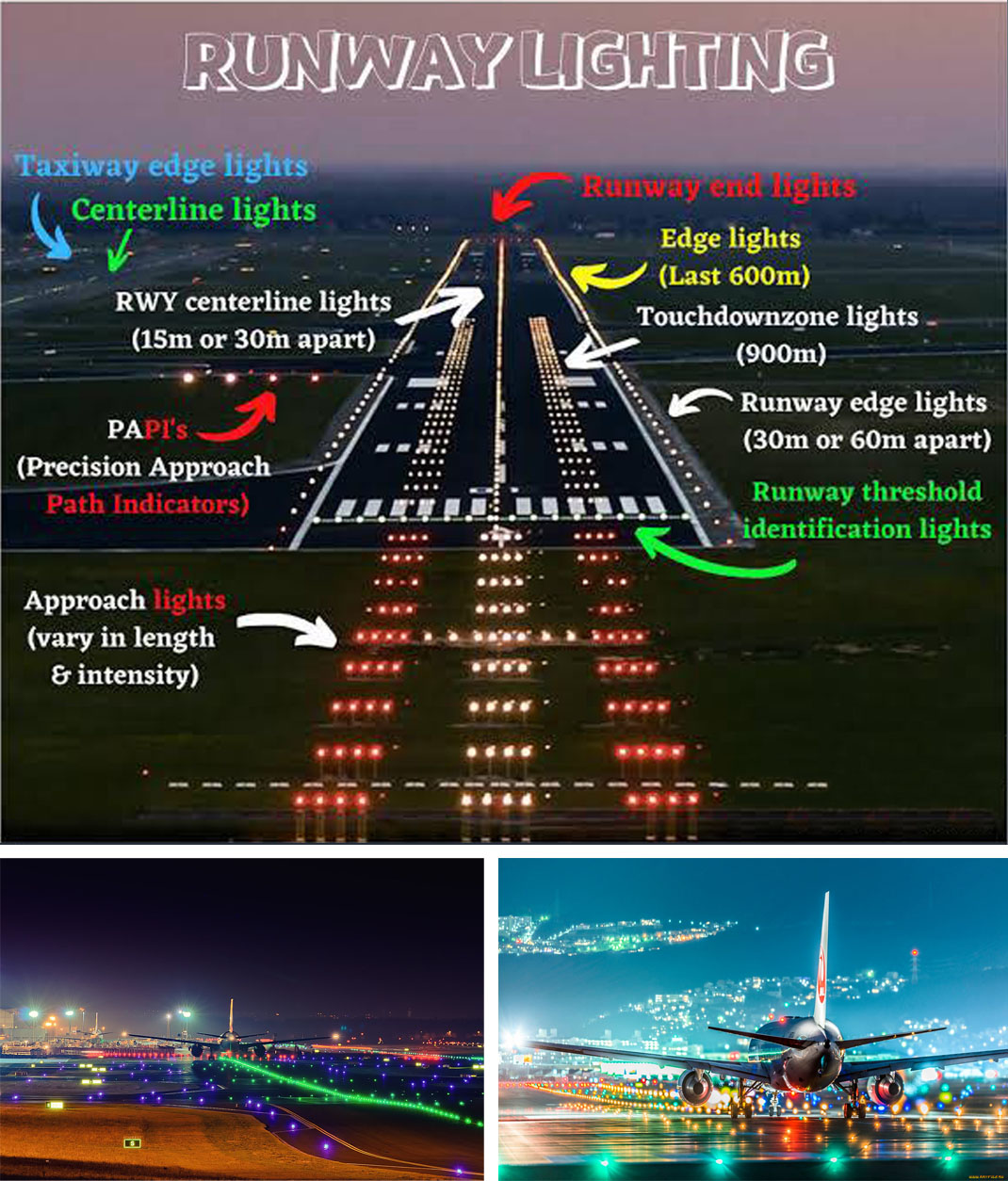

This product is application to approach centerline lights and side lights of civil and military airports
