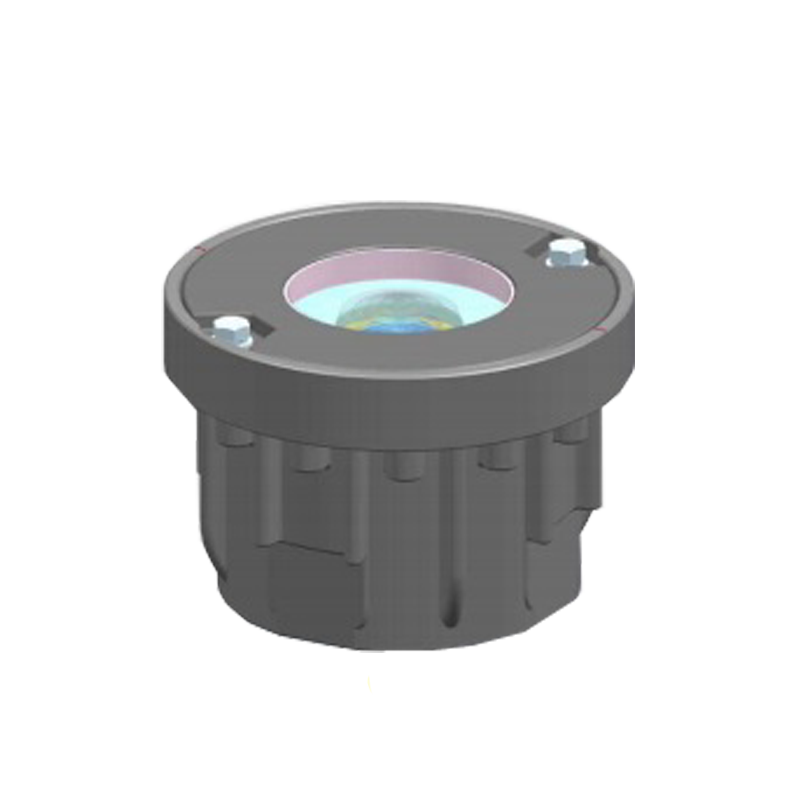

Runway Inset Centerline Light
| Halogen lamp power | 48W |
| LED power | 7W |
| IP rate | IP67 |
| Power factor | 0.8-0.96 |
| Brightness | >2CD |
| Ambient temperature | -55-+55℃ |
PRODUCT DESCRIPTION
Product Feature:
nLight intensity and light color meet the standard requirements.
nPrecise optical control, high light utilization, high brightness and outstanding optical performance .
nThe overall shape of the lamp is beautiful, the heat dissipation performance is good, and the design is reasonable .
nThe lamps are cast by aluminum alloy with high strength.
nAnti-corrosion treatment on the surface of lamps and lanterns, durable.
Executive Standard
nISO
n ICAO(Airport-Annex-14-2013.7-Sixth Edition)
n ICAO-Airport Design Manual
nFAA(AC150/5345-46E)
n GB7256-2015
n GB3977-83
n GB7001-86
n AC-137-CA-2015-03-R1
n AC-137-CA-2015-04-R1

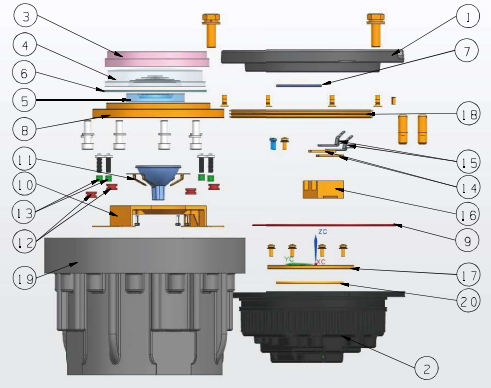

Structure
| 1 | Cover | 11 | Bulb card |
| 2 | Inner cap | 12 | Ring rubber pad |
| 3 | Rubber seal | 13 | Screw sleeve |
| 4 | Prism | 14 | Terminal |
| 5 | Prism 2 | 15 | Terminal Connector |
| 6 | PI pressing plate | 16 | Ceramic terminal |
| 7 | Filter | 17 | Terminal seal cover |
| 8 | Prism pressure plate | 18 | Inner cover seal ring |
| 9 | O type sealing ring | 19 | Base |
| 10 | Bulb holder | 20 | O type sealing ring |
Application:

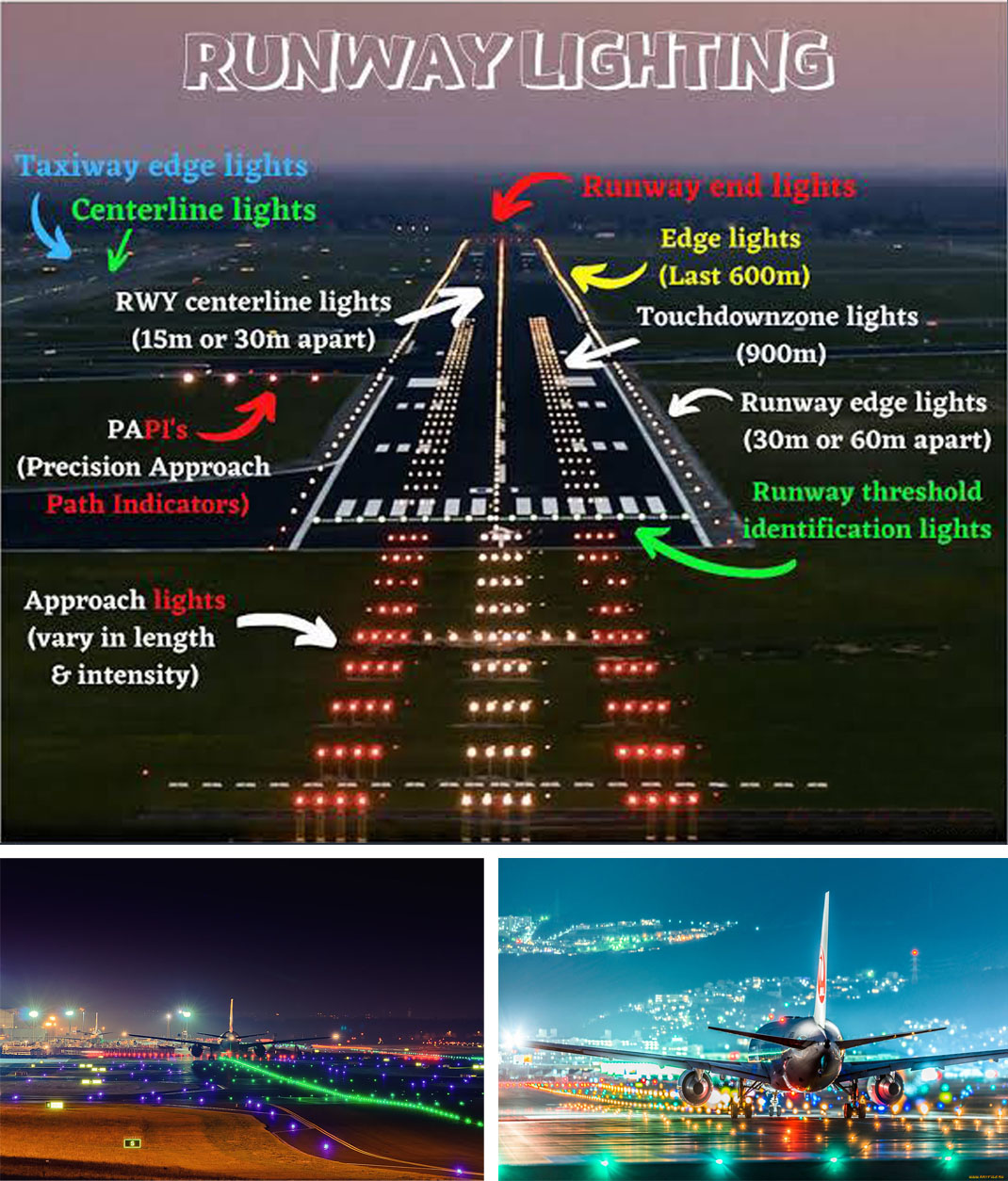

Suitable for taxiway lights in civil and military airfields, aiming lights in heliport, landing area lights, final approach lights and take-off area lights.
