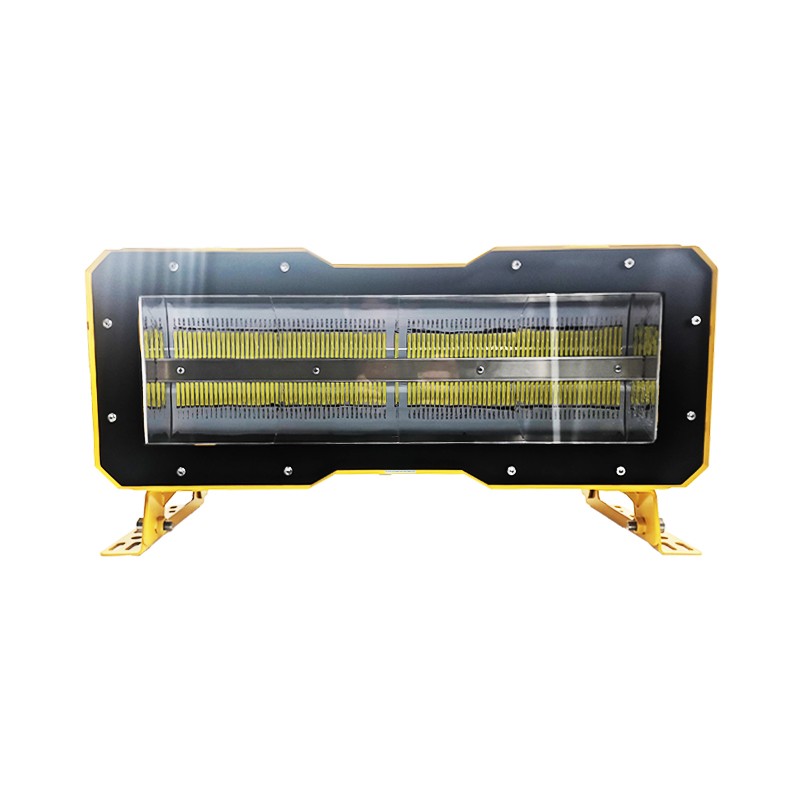

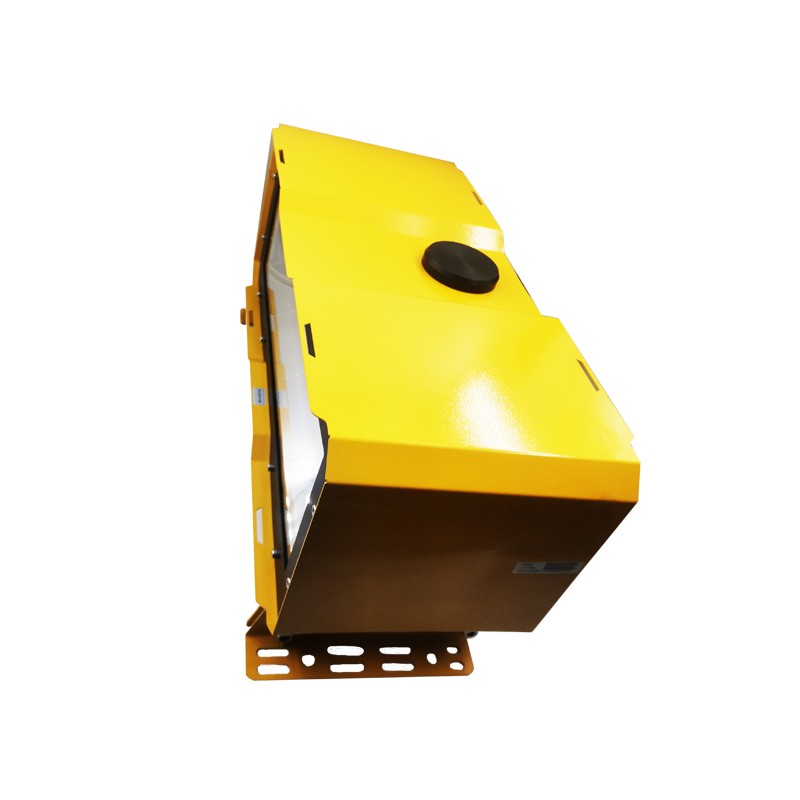

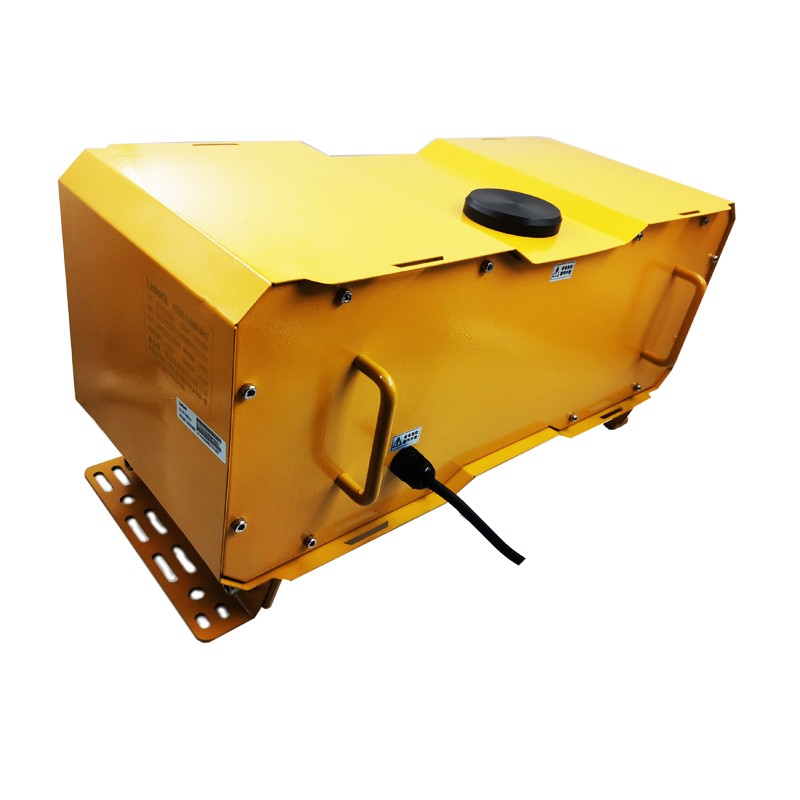

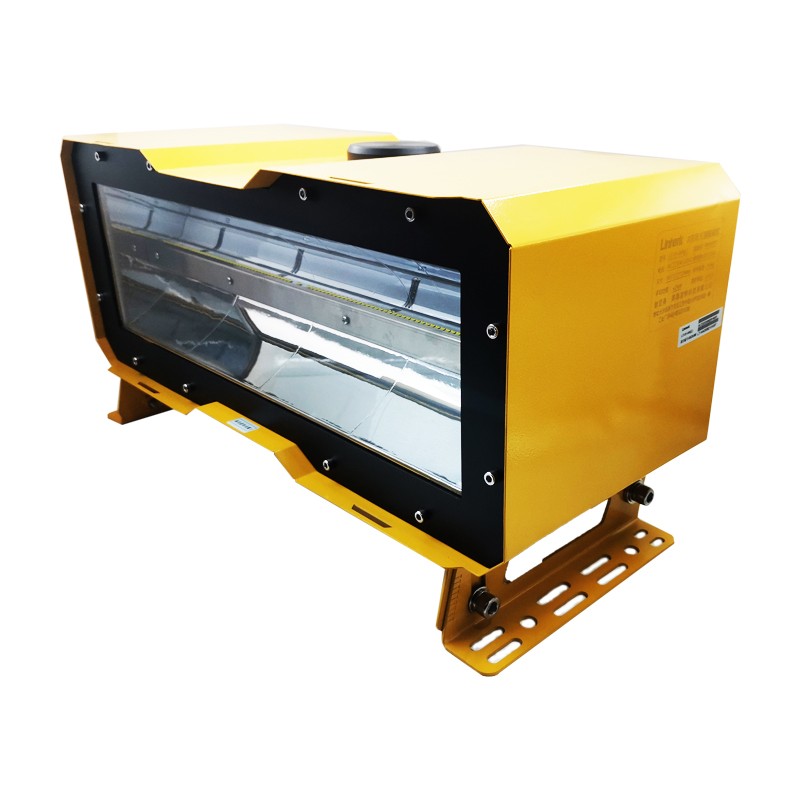

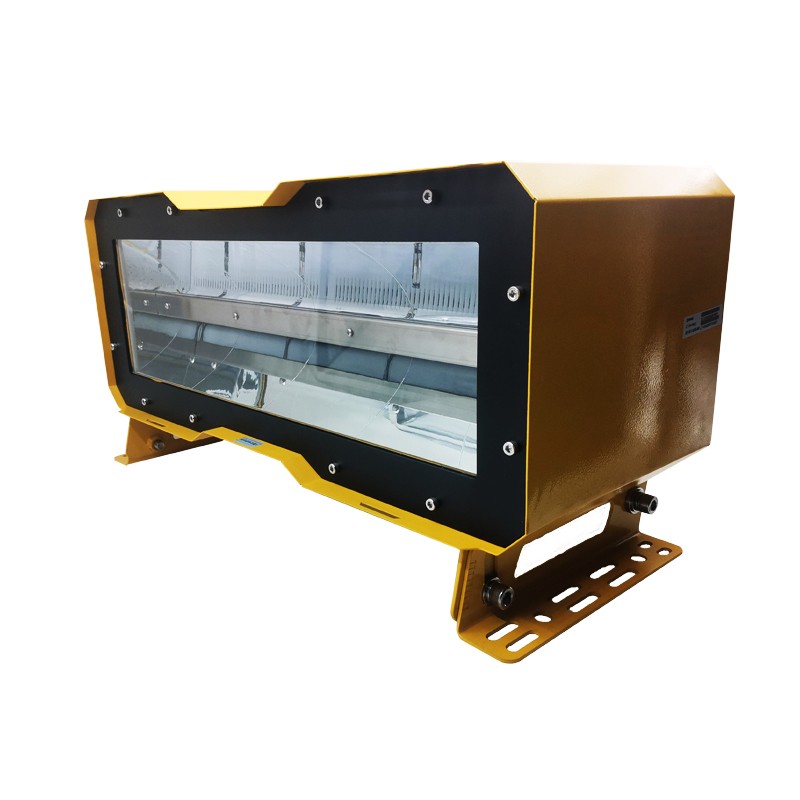

High Intensity Type B 90 Degree Obstacle Light
| Model number | LT-01-HB (L) |
| Work voltage | AC85-265V |
| Power consumption | ＜11W |
| Surge resistance | IEC61000-4-5 3kA, IEC61000-4-5 6kV |
| Lightsource | LED |
| Light color | White |
| Vertical degree | 3° |
| Horizontal degree | 90° |
| Flashing rate | 40~60 FPM(adjustable) |
| LED life | ≥100,000 hours |
Share:
PRODUCT DESCRIPTION
Specification:
| Model number | LT-01-HB(L) | Photosensitivity | 0~500cd/ ㎡ (adjustable) |
| Work voltage | AC85-265V | Intensity | Day: 100,000±25%cd |
| Power consumption | ＜11W | Dusk Dawn: 10,000±25%cd | |
| Surge resistance | IEC61000-4-5 3kA IEC61000-4-5 6kV | Night: 2000±25%cd | |
| Lightsource | LED | Ambient temperature | -40˚C ~ +55˚C |
| Light color | White | Ambient humidity | 0% ~ 95% (no condensing) |
| Vertical degree | 3° | Wind level | 240Km/h |
| Horizontal degree | 90° | IP rate | IP65 |
| Flashing rate | 40~60 FPM(adjustable) | Weight | 14.5Kg |
| LED lifespan | ≥100,000 hours | Materials | Body: Stainless Steel Cap: High Strength PC Reflector: ABS Vacuum Coating |

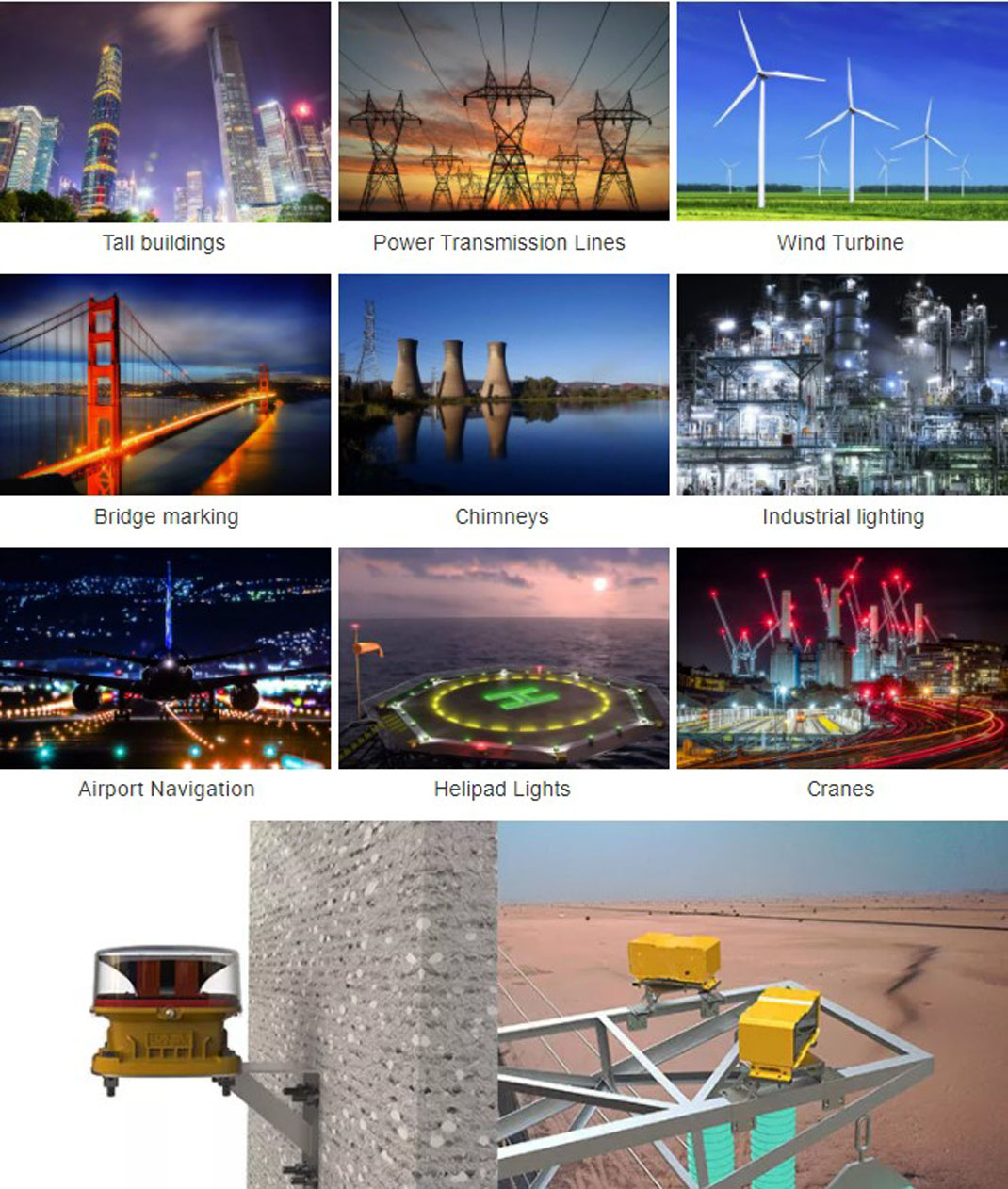

Application Fields:
Executive Standard:
ICAO (Aerodromes Annex 14-2018)
CAAC (MH5001-2019), (MH/T6012-2015)
FAA (AC150-5345-43H)
Installation size:
Application Fields:
