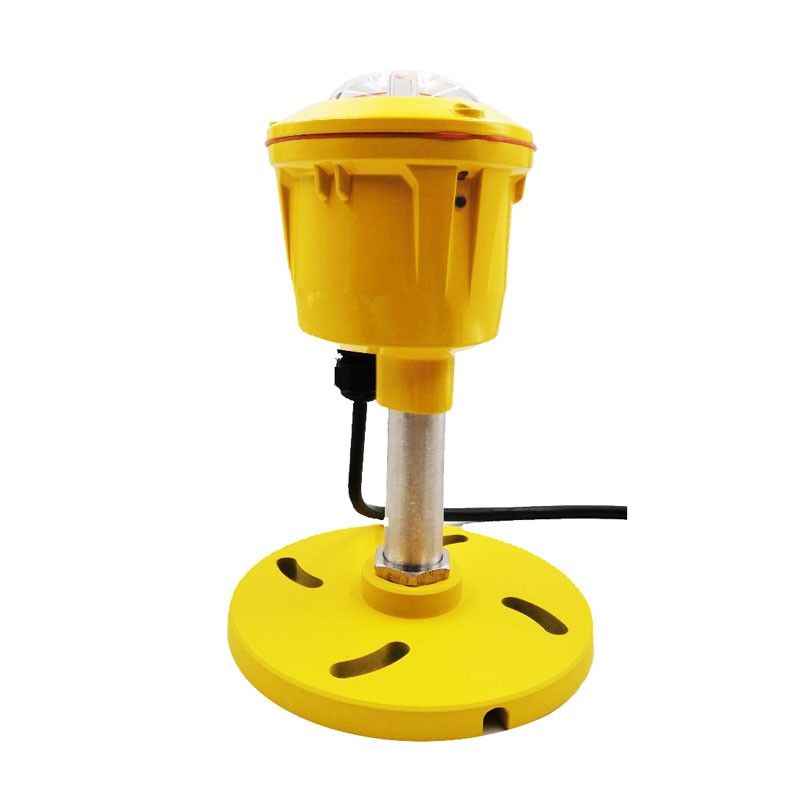

ICAO Aviation Obstruction Light Low Intensity Type A

Model numberLT-01-LA (L)
Work voltageAC85-265V
Power consumption<2W
Surge resistance

IEC61000-4-5 3kA, IEC61000-4-5 6kV

Light sourceLED
Light colorRed
Vertical degree≥ 10 °
Horizontal degree360°
Work ModeConstant light
Share:

PRODUCT DESCRIPTION

Specification:


Model numberLT-01-LA (L)LED life≥100,000 hours
Work voltageAC85-265VPhotosensitivity0~500cd/ ㎡ (adjustable)
Power consumption<2WIntensity> 10cd
Surge resistance

IEC61000-4-5 3kA

IEC61000-4-5 6kV

Ambient temperature-40˚C ~ +55˚C
Light sourceLEDAmbient humidity0% ~ 95% (no condensing)
Light colorRedWind level240Km/h
Vertical degree≥ 10°IP rateIP67
Horizontal degree360°Weight1.1Kg
Work ModeConstant lightMaterials

Housing: Aluminum Alloy

Lens: Optical Glass



Executive Standard:


ICAO (Aerodromes Annex 14-2018)

CAAC (MH5001-2019), (MH/T6012-2015)

FAA (AC150-5345-43H)


Installation size:


Aeronautical Obstruction Light Cranes Red LED obstruction light
